I  N  D  U  S  T  R  I  A  L     S  E  R  I  E  S
 Specific Solutions for Traily Transport
TM 2000/1600 ATO

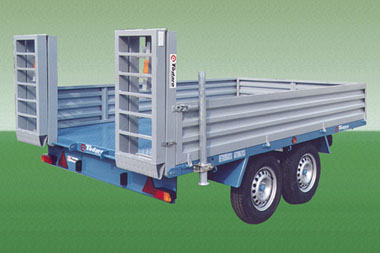

TRAILER TOW WITH RAMP FOR CATERPILLAR AND WORKPIECES TRANSPORT

Characteristics:

• Structure in zinc plated sheet painted with anti-rust epoxy paint and enamels
• Steel pipes chassis painted
• Oven painting
• 4 overturnable banks in extrusion of shaped light league

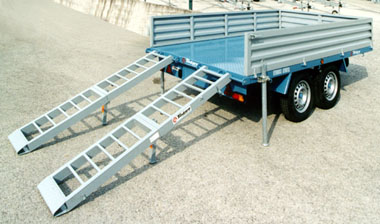

• Flexible staircases of slope in 2 pieces in galvanized plate, complete of dampers of opening and closing
• Sides locks industrial vehicles type
• Torsion bar suspensions
• Inertial brakes with regulation shock absorbers
• Backing automatic system
• Mudguards in galvanized plate and painted
• Telescopic wheel reglable
• Homologated M.T.M.C. for Italy
• Lights according to highway code

click here to enlarge the photo

OPTIONALS:

• Banks agricultural type in folded up plate
• Wheels 165 SR 13
• Personalized preparations and closed tailer tow
• Spare Wheel
• Aditionale Lateral Sides


• Mechanical parking brake with lever control
T E C H N I C A L   D A T A :

  Total weight (Kg): 2.000 / 1.600
  Load capacity (Kg):

1.600 / 1.200
  Tare (Kg):

400
  External dimensions (cm):

406 x 180 x h 106
  Box dimensions (cm):

300 x 180
  Sides Height (cm)

40
  Wheels:

155 SR 13'
  Number of axes:

2

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax 0924 951822 (3 linee r.a.) - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
