N   A  U  T  I  C  A  L    S  E  R  I  E  S
 Specific Solutions for Traily Transport

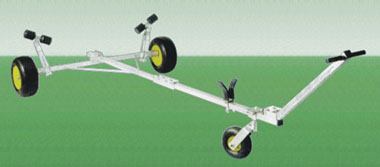

TBM 200
TOW FOR LAUNCHING AND TOWAGE - LOAD 200 KG.

 Characteristics:

• Steel pipes chassis
• Adjustable back double rolls in height and width
• Adjustable anterior bow-stop rubber
• Frame can be dismantled
• Drawbar with knob
• Pneumatic front wheel revolving

click here to enlarge the photo

OPTIONALS:

• Wheels increases in pneumatic nylon 410x165
• Roller and additional bars
• Stirrup- shaft with winch from Kg.350
• Kit Visual devices
• Towing hitch for inside moves
• Front wheel adjustable in height


T E C H N I C A L   D A T A :
  Total weight (Kg): 200
  Load capacity (Kg): 175
  Tare (Kg): 25
  External dimensions (cm): 370x150
  Length boat (cm): 370
  Wheels:

400x100
  Number of axes: 1

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax +39 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
