N   A  U  T  I  C  A  L    S  E  R  I  E  S
 Specific Solutions for Traily Transport

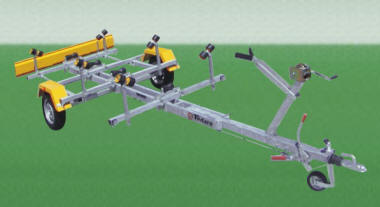

TB 800 Overturnable
OVERTURNABLE TRAILER TOW FOR BOATS TRANSPORT

Characteristics:

• Steel pipes chassis
• Double Overturnable frame
• Torsion bar suspensions
• Inertial brakes with regulation shock absorbers
• Backing automatic system
• Telescopic wheel adjustable
• Accessories in steel galvanized with rolls and saddles raft in rubber
• Bumper and mudguards in steel plate galvanized
• Connection for potting to application
• Back lights on detachable bumper of great dimensions
• Homologated M.T.M.C. for Italy
• Lights according to highway code
• Mechanical parking brake with lever control

click here to enlarge the photo

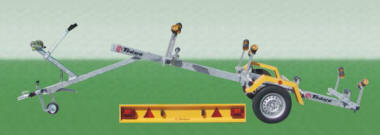

Overturnable frame with detachable bumper


OPTIONALS:

• Spare wheel with support
• Electric winch
• Quadruple back rolls up-and-over and central roll double up-and-over


T E C H N I C A L   D A T A :
  Total weight (Kg):

800 / 550
  Load capacity (Kg): 540
  Tare (Kg): 260
  External dimensions (cm): 605 x 196
  Length boat (cm): 570
  Wheels: 155 - 13'
  Number of axes: 1

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax +39 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
