N   A  U  T  I  C  A  L    S  E  R  I  E  S
 Specific Solutions for Traily Transport

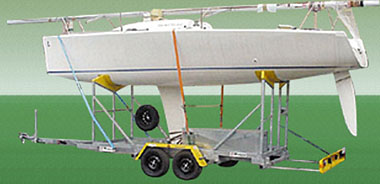

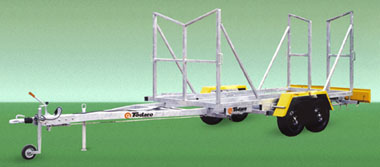

TBV Bénéteau 25
TRAILER TOW FOR BENETEAU 25 SAILBOATS TRANSPORT

TVB 25 Bénéteau 25, has been projected and built for transporting your boat/boats  in the surest way, comfortable and rapid, without having to perform some modification.
Todaro traile tow, allows you to personalize it and to add specific accessories on application.


Characteristics:

• Structure in zinc plated sheet painted with anti-rust epoxy paint and enamels
•  Adjustable launching cradle.
 lengthwise  structural steel galvanized to warm
• Double axis
• Torsion bar suspensions
• Backing automatic system
• Foot of support and anterior telescopic wheel adjustable
• Spare wheel with relative support
• Bumper and mudguards in steel plate galvanized painted
•  Back lights on detachable bumper of great dimensions
• Type-approved M.T.M.C. for Italy
• Lights type-approved
 • Booklet of guarantee, use and maintenance
• Handbrake
• Special specific saddles built fibreglass
• Footboard for support derives
• Bar stops-drift

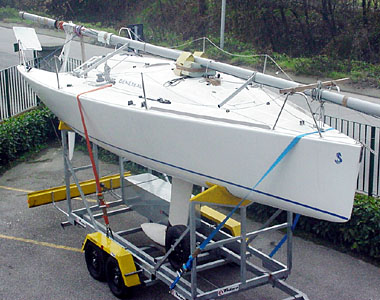

click here to enlarge the photo

OPTIONALS:

• Toolbox
• Back additional pedestals
• Personalization on demand

• Mechanical parking brake with lever control


T E C H N I C A L   D A T A :
TBV 25
  Total weight (Kg):

2.000
  Load capacity (Kg): 1.560
  Tare (Kg): 440
  External dimensions (cm): 800 x 215
  Wheels: 185 SR 14
  Number of axes: 2

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax +39 0924 951822 (3 linee r.a.) - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
