N   A  U  T  I  C  A  L    S  E  R  I  E  S
 Specific Solutions for Traily Transport
TBV Derive
 type 4.20, 4.70, Europa, Laser, Snipe, Finn, Strale, 49er
TRAILER TOW FOR DERIVE
BOATS TRANSPORT

TVB DERIVE has been projected and built for transporting your boat/boats  in the surest way, comfortable and rapid, without having to perform some modification.
Todaro traile tow, allows you to personalize it and to add specific accessories on application.

Characteristics:

• It built on the base of TB 400 - for n. 1 derive - and TB 800 / TB 1000 for multiple transport
• Structure in zinc plated sheet painted with anti-rust epoxy paint and enamels
•  Adjustable launching cradle.
 lengthwise  structural steel galvanized to warm
• Single-axis
• Torsion bar suspensions
• Backing automatic system
• Foot of support and anterior telescopic wheel adjustable
• Special framework  in steel galvanized to warm equipped with special visual devices
• Spare wheel with relative support
• Bumper and mudguards in steel plate galvanized painted
•  Back lights on detachable bumper of great dimensions
• Type-approved M.T.M.C. for Italy
• Lights type-approved
 • Booklet of guarantee, use and maintenance

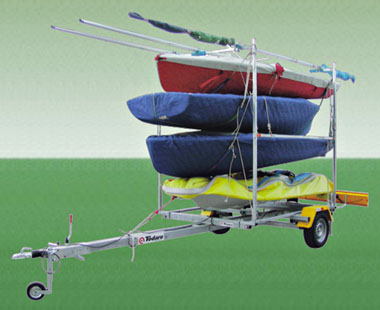

click here to enlarge the photo

OPTIONALS:

• Toolbox
• Back additional pedestals
• Personalization on demand
• Mechanical parking brake with lever control

T E C H N I C A L   D A T A :

TBV DERIVE 400 TBV DERIVE 800 TBV DERIVE 1000
  Total weight (Kg):

400

800

1.000
  Load capacity (Kg): 250 540 670
  Tare (Kg): 150 260 330
  External dimensions (cm): 550 x 169 605 x 196 682 x 215
  Wheels: 4.00-10 155 R 13 185 SR 14
  Number of axes: 1 1 1

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax +39 0924 951822 (3 linee r.a.) - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
