I  N  D  U  S  T  R  I  A  L     S  E  R  I  E  S
Specific Solutions for Traily Transport
TM 1200 ACR
TRAILER TOW WITH RAMP

Characteristics:
• Structure in zinc plated sheet painted with anti-rust epoxy paint and enamels
• Steel pipes chassis
• Oven painting
• Flatcar in painted plate
• Aluminum Ramp folding in 2 pieces
• 2 back pedestals in tubular galvanized for the support of the towing
• 4 banks overturnable agricultural type
• Walls locks industrial vehicles type
• Torsion bar suspensions
• Inertial brakes with regulation shock absorbers
• Backing automatic system
• Mudguards in galvanized plate and painted
• Telescopic wheel reglable
• Homologated M.T.M.C. for Italy
• Lights according to highway code

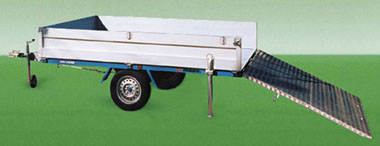

click here to enlarge the photo

OPTIONALS:

• Banks in extrusion of shaped light league
• Wheel 165 SR 13
• Customized preparation
• Spare wheel
 • Column for capstan with manual capstan or
automatic
• Specific preparations
• Mechanical parking brake with lever control
T E C H N I C A L   D A T A :

  Total weight (Kg): 1.600 / 1.200
  Load capacity (Kg):

1.200 / 800
  Tare (Kg):

400
  External dimensions (cm):

406 x 180 x h 106
  Box dimensions (cm):

250 x 160
  Banks Height (cm)

35 / 40
  Wheel

185 SR 14'
   Number of axes:

1

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
