I  N  D  U  S  T  R  I  A  L    S  E  R  I  E  S
Specific Solutions for Traily Transport
TM 300 BASIC
TRAILER TOW

Characteristics:

• Carrying structure in zinc plated steel stamped sheet
• Case in zinc plated sheet painted with anti-rust epoxy paint and enamels
• Overturnable back bank
• Torsion bar suspensions
• Telescopic wheel reglable
• Omologated M.T.M.C. for Italy
• Plastics mudguards
• Lights according to highway code

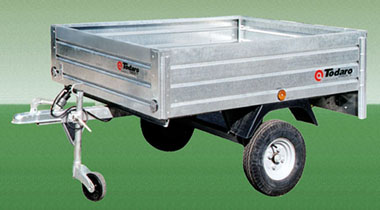

click here to enlarge the picture
OPTIONALS:

• Roof in galvanized plate and painted, with closing, damper gas lifting
• Spare wheel
T E C H N I C A L   D A T A :

 Total weight (Kg): 300
 Load capacity (Kg):

200
 Tare (Kg):

100
 External dimensions (cm):

200 x 120
 Box dimensions (cm):

145 x 115
 Height banks(cm):

30
 Internal height (cm):

30 (55)*

*:with optional closed roof
 Ruote:

4.00 - 8'
 Numero di assi:

1

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
