I  N  D  U  S  T  R  I  A  L     S  E  R  I  E  S


Specific Solutions for Traily Transport
TM 300 LUSSO
TRAILER TOW

Characteristics:

• structure in steel plate stamped
• Case in zinc plated sheet painted with anti-rust epoxy paint and enamels
• Overturnable back bank
• Torsion bar suspensions
• Inertial brakes with regulation shock absorbers
• Backing automatic system
• Telescopic wheel reglable
• Homologated M.T.M.C. for Italy
•  Lights according to highway code

• It systematizes " salute space " with vertical positioning

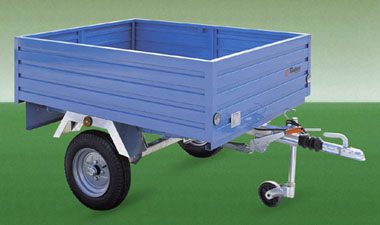

click here to enlarge the photo

OPTIONALS:

• Height of the banks increased on application
• Spare wheel
• Roof in galvanized plate and painted, with closing, damper gas lifting
T E C H N I C A L   D A T A :

  Total weight (Kg): 300
  Load capacity (Kg):

200
  Tare (Kg):

100
  External dimensions (cm):

200 x 120
  Box dimensions (cm):

145 x 115
  Height banks (cm)

30
   Internal height (cm):

30 (55)*

*: with optional closed roof
  Wheels:

4.00 - 10'
  Number of axes:

1

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
