I  N  D  U  S  T  R  I  A  L     S  E  R  I  E  S
Specific Solutions for Traily Transport
TM 3500/2800/2000 ATO
TRAILER TOW WITH RAMP FOR CATERPILLAR AND WORKPIECES TRANSPORT

Characteristics:

• Structure in zinc plated sheet painted with anti-rust epoxy paint and enamels
• Steel pipes chassis
• Oven painting
• Flatcar painted plate or galvanized
• Scale of slope in galvanized plate, complete of closing
• 2 back pedestals in tubular galvanized for the support of the towing
• Sides locks industrial vehicles type
• Torsion bar suspensions
• Inertial brakes with regulation shock absorbers
• Backing automatic system
• Mudguards in galvanized plate and painted
• Telescopic wheel adjustable
• Homologated M.T.M.C. for Italy
• Lights according to highway code

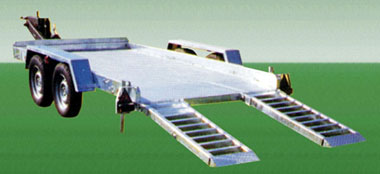

click here to enlarge the photo
OPZIONALI:

• Sides agricultural type in folded up plate
• Personalized preparations and closed tailer tow
• Spare Wheel
• Additional lateral sides


• Mechanical parking brake with lever control
T E C H N I C A L   D A T A :

TM 3500 ATO TM 2800 ATO  TM 2000 ATO
  Total weight (Kg): 3500/3000 2800/2500 2000/1600
  Load capacity (Kg):

790

760

650
  Box dimensions (cm):

579 x 552

579 x 552

579 x 552
  External dimensions (cm):

345 x 182

345 x 182

345 x 182
  Wheels:

185R14C

185R14C

185R14C

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
