I  N  D  U  S  T  R  I  A  L     S  E  R  I  E  S
 Specific Solutions for Traily Transport
TM 1600 TF
Closed Trailer Tow
CLOSED TRAILER TOW

Characteristics:

• Structure in zinc plated sheet painted with anti-rust epoxy paint and enamels
• Steel pipes chassis, Oven painting
• Flatcar in striped plate antiskid
• 2 vertical back counters with locks industrial vehicles type
• Aerator for inside ventilation
• Possibility of side opening
• Torsion bar suspensions
• Inertial brakes with regulation shock absorbers
• Backing automatic system
• Telescopic wheel reglable
• Homologated M.T.M.C. for Italy
• Lights according to highway code
OPTIONALS:

• Spare wheel
• Specific preparations
•Mechanical parking brake
with lever control

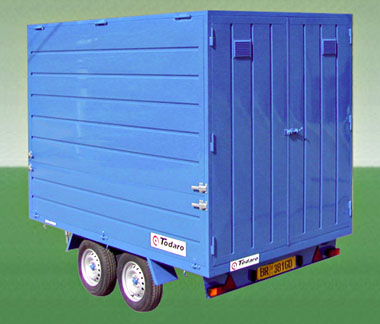

click here to enlarge the photo

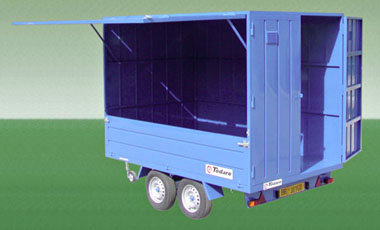

click here to enlarge the photo
T E C H N I C A L   D A T A :

  Total weight (Kg): 1.600 / 1200
  Load capacity (Kg):

850
  Tare (Kg):

750
  External dimensions (cm):

406 x 180
  Box dimensions (cm):

300x 180 x h 200
  Internal height (cm):

190*

* another heights allowable
  Wheels:

155 SR 13
  Number of axes:

2

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
