I  N  D  U  S  T  R  I  A  L    S  E  R  I  E  S
Specific Solutions for Traily Transport
TM SILVER

TRAILER TOW
SILVER Series

 Todaro Rimorchi, with more tha 30 years of experience in the field, it's distinguished by the high quality and the detailed and particular way to build and to customize tows, also for the new Silver Series tows, full made in zinc-plated. All Silver Series tows are builded with the maximum care in each particular, assuring a long useful life and making the most comfortable, practical and reliable transport

Characteristics:

• Carrying structure in zinc plated steel stamped sheet
• Case in zinc plated sheet painted with anti-rust epoxy paint and enamels
• Overturnable back bank
• Indipendent wheels with Torsion bar suspensions
• Anterior navigation lights (only for TM900)
• Customizable:wide range of accessories
• Telescopic wheel reglable
• Backing automatic system
• Omologated M.T.M.C. for Italy
• Plastics mudguards
• Lights according to highway code







detail:
Fog backlight Fixing hooks

13 Pins connector Automatic parking brake



• It systematizes " salute space " with vertical positioning

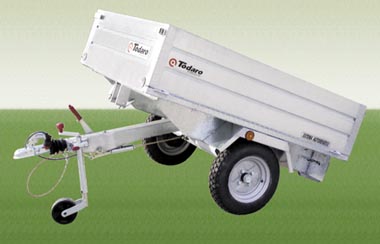

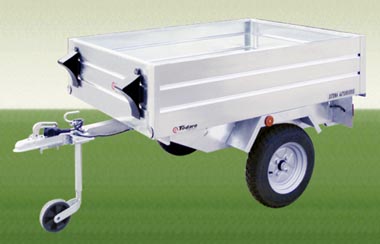

 TM 400 Basic

 TM 600

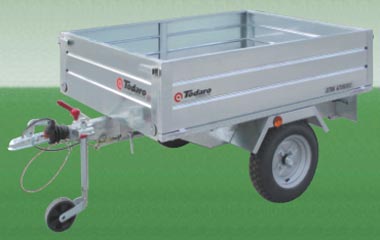

 TM 600 ZB4R


 TM 900 Z


.
OPTIONALS:

• Ribaltable sides
• Turnable chassis
• Reinforced platform
• Spare wheel


• Turnable chassis

NOTES:
TM 400 BASIC: without brakes -with wedges-
TM400/600 Z: general transport zinc-plated tow with 3 fixed walls and overtunable back wall
TM400/600/900 Z4: general transport zinc-plated tow with 4 overtunable walls
TM400/600/900 ZB4: general transport zinc-plated tow with 4 overtunable walls
and reinforced platform
 TM400/600/900 ZBR4: general transport zinc-plated turnable tow with 4 overtunable walls
and reinforced platform


T E C H N I C A L   D A T A :


 Model

  Total weight (Kg): Tare Box dimensions (cm) Height Sides (cm) Wheel Axis
TM 400 BASIC 400 (300)* 90 118 x 148 35 4.00-10 1
TM 400 Z 400 (300)* 100 118 x 148 35 4.00-10 1
TM 400 Z4 400 (300)* 100 118 x 148 35 4.00-10 1
TM 400 ZB4 500 (300)* 110 (100) 118 x 148 35 4.00-10 1
TM 400 ZB4R 500 (300)* 120 (100) 118 x 148 35 4.00-10 1
TM 600 Z 600

160

 145 x 175 35 4.50-10 1
TM 600 Z4 600 160 145 x 175 35 4.50-10 1
TM 600 ZB4 750 (600)* 175 (160) 145 x 175 35 4.50-10 1
TM 600 ZB4R 750 (600)* 175 (160) 145 x 175 35 4.50-10 1
TM 900 Z 900 (750) 280 160 x 220 35 155-R13 1
TM 900 Z4 900 (750) 280 160 x 220 35 155-R13 1
TM 900 ZB4 900 (750) 280 160 x 220 35 155-R13 1
TM 900 ZB4R 900 (750) 280 160 x 220 35 155-R13 1

*appendix

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax 0924 951822 - E-mail: todarorimorchi@tiscalinet.it


Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
