S  P  O  R  T     S  E  R  I  E  S
Specific Solutions for Traily Transport

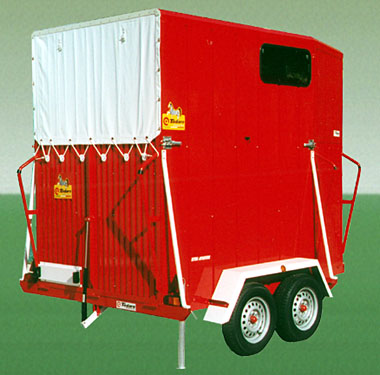

TTC Super Top
TRAILER TOW
FOR HORSES TRANSPORT

Characteristics:

• Structure in zinc plated sheet painted with anti-rust epoxy paint and enamels
• Oven painting
• Floor in chequered steel plate
• Ramps in zinc plated stamped sheet steel, multi-stratum wood covered
• Ramp of slope with closing through gas damper
• Rigid roof in plate with anterior window
• Inside faced in phenolic wood
• Torsion bar with indipendent suspensions
• Backing automatic system
• Telescopic wheel adjustable
• Mudguards in galvanized plate and painted
• Homologated M.T.M.C. for Italy
• Lights according to highway code



click here to enlarge the photo

OPTIONALS:
• Internal Light
• Spare wheel
• Rubber floor
• Stable rail
•  Dividing head
 •  Gas shock absorber for back ramp



• Mechanical parking brake with lever control


___-

click here to enlarge the photo

T E C H N I C A L   D A T A :

  Total weight (Kg): 2.000 / 1.600
  Load capacity (Kg):

1.400 / 1.000
  Tare (Kg):

600
  External dimensions (cm):

380 x 195 x h 280
  Box dimensions (cm):

280 x 150
  Sides Height (cm)

210
  Wheels:

165 SR 13
  Number of axes:

2
TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax 0924 951822 (3 linee r.a.) - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
